10 Best Box And Pan Brake Guide For Sheet Metal Bending Widths, Fingers, Clamping 2026

⚡ Quick Verdict

📋 How We Evaluated

Evaluation emphasized build quality and structural rigidity, including blade thickness, finger systems, and clamp design. Performance criteria covered bending range, clamping consistency, and suitability for common gauges and metals. Value and usability considered portability, setup effort, Amazon-style rating signals when available, and fit for DIY versus production workloads.

Bending Width	48 in
Clamping Force	6-ton magnetic clamping
Material Capacity	16-gauge (0.06 in)
Control Method	220V with foot pedal

What We Found

The KAKA INDUSTRIAL EB-4816M is a 48-inch magnetic box and pan brake aimed at power-bending performance. It claims 6-ton magnetic clamping for precision, with the goal of applying uniform force so bends stay crisp near the workpiece center.

The open-ended design is intended to support “unlimited” bending by allowing enclosed ducts and complex shapes beyond some benchtop limitations. It runs on 220V with an SP configuration and includes a foot pedal for hands-free control. That foot-pedal setup is meant to improve safety and control during bending.

Multiple clamp bars add flexibility for straight and segmented bends, which can reduce reconfiguration time across different projects. The listed capacity targets 16-gauge metal, aligning with many HVAC and automotive repair needs where moderate thickness is common.

It also has a compact base for shop organization, while the heavy-duty design is positioned for repeated daily use. Overall, it stands out as the only electrically driven magnetic option in this set.

Who It’s For

I would recommend this for HVAC contractors, automotive repair shops, and teams that need consistent bends across repeated jobs. Magnetic clamping plus foot-pedal control can reduce fatigue during production, and it is designed to keep results more uniform.

The 48-inch capacity works for larger panels, duct sections, and box assemblies where you want fewer seam breaks. The 16-gauge rating suits many everyday fabrication tasks, especially when material consistency matters.

Advanced DIY users could benefit too, but the 220V setup and shop-focused workflow make it best for environments with proper electrical and safety practices.

Bending Width	100 in floor model
Max Steel Thickness	12 gauge / 0.1 in mild steel
Max Bend Angle	0-135°
Bending System	Segmented finger blade with shiftable finger widths

What We Found

The KAKA INDUSTRIAL W-10012A is a 100-inch floor model brake designed for large-format fabrication. It uses a segmented finger bending system and lists a 12-gauge / 0.1 inch mild steel capacity. The bending angle range is 0-135°, aimed at heavy work and deeper box sections.

The segmented finger blade and shiftable finger widths are intended for straight bends, pan forming, and box-section bending across different sheet metal layouts. The listing also mentions hammer operation and counterweights to reduce bending effort with compatible thicker material.

It includes in-line bed and apron boring, which supports consistent setup and repeatability for production. With about 2695 lb net weight, it is clearly positioned for industrial shops, not home use.

The included stand and large floor-model footprint are built for stability on big trays, brackets, gussets, covers, and custom parts. For batch work that needs long bends, it stands out for capability and dedicated industrial design.

Who It’s For

I would recommend this for fabrication shops, maintenance departments, and HVAC or industrial metalworking centers that regularly build large boxes and long trays. The 100-inch width helps you avoid inconvenient seams that happen when you are limited to benchtop brakes.

The 12-gauge mild steel capacity targets heavier material tasks like structural covers, brackets, and thick-bottom trays. Segmented fingers also help you adapt quickly to different layouts without waiting for custom tooling.

Since it is a heavy floor model, it is best for permanent shop installations rather than portable projects or casual DIY fabrication.

Max Bending Width	48 inches (1220 mm)
Max Bend Angle	0-135° adjustable
Bending Blade Thickness	0.31 in thick blade
Stated Metal Capacity	20 gauge low carbon steel, 14 gauge aluminum

What We Found

The VEVOR 48-inch box and pan brake targets longer bends with a maximum 48-inch (1220 mm) width. It uses a 0.31-inch-thick blade and a reinforced rib design, aiming to reduce flex for cleaner folds. The press plate setup integrates clamping, so you do not rely on separate external clamps.

Angle adjustment runs from 0° to 135°, which covers both shallow offsets and near-right-angle bends. It lists support for 20-gauge low carbon steel and 14-gauge aluminum. A Q235 steel frame and screw-mounted holes let you bolt it down for stability.

Handle installation is described as quick, which helps if you run multiple bends in one session.

Who It’s For

I would shortlist this if your projects need more bend length than 24- or 36-inch folders. It fits ducting sections, flanged panels, and tray or pan components where consistent box seams matter. The 20-gauge steel and 14-gauge aluminum ratings fit light fabrication batches and many HVAC-adjacent builds.

Integrated clamping helps keep setup friction low for repeat work. The 0-135° range also helps when you are revising angles mid-project. It is also practical for mobile job sites since it is a bench-style unit.

Max Bending Width	36 inches (910 mm)
Max Bend Angle	0-135° adjustable
Bending Blade Thickness	0.31 in thick blade
Stated Metal Capacity	20 gauge low carbon steel, 14 gauge aluminum

What We Found

The VEVOR 36-inch sheet metal brake sits in the middle for shops that need more reach than 24 inches, but easier handling than 48-inch units. It uses the same box-and-pan category design, with a 0.31-inch blade and reinforced rib construction aimed at limiting flex.

The integrated press plate clamps the sheet, so clamping is less fiddly than separate clamp hardware. The angle range covers 0° to 135°, supporting typical box and flange layouts. It lists capacity for 20-gauge low-carbon steel and 14-gauge aluminum, which matches many small fabrication tasks.

The Q235 steel frame is meant to support durability, and mounting holes help you bolt it down. The listing also emphasizes versatility across materials like stainless, copper, galvanized, and iron sheets.

Who It’s For

This brake makes sense for makers and small shops building cabinets, pans, and duct-style enclosures. The 36-inch width is a helpful step up if a 24-inch brake forces extra seams.

I would also shortlist it for prototyping, since projects often need more than one bend geometry and you can adjust angles. The stated capacity fits common low-carbon steel and aluminum thicknesses for hobbyist-to-small-shop use. Setup stays manageable because the listing describes quick handle installation.

If you want a single unit for mixed jobs, the integrated clamping design is a plus.

Max Bending Width	24 in (610 mm)
Max Bend Angle	0-135° adjustable
Bender Blade/Frame Material Thickness	0.39 in thick metal
Stated Metal Capacity	20-gauge low carbon steel, 16-gauge aluminum

What We Found

The VEVOR 24-inch portable metal bender adds modular segmentation for more complex edge bending tasks. It lists 10 modular components, offering 1-inch, 2-inch, 3-inch, and 4-inch segment options. That setup should help when your channel reinforcement edges need widths that basic fingers cannot cover.

The bending system uses a heavier-duty structure built from 0.39-inch thick metal, with listed 21 HRC hardness for better resistance during repeated forming. It targets 20-gauge low-carbon steel and 16-gauge aluminum. That suggests it can handle aluminum better than many similar 24-inch units.

You also get a 0-135° adjustable angle range for matching project geometry. Q235 steel construction supports longevity, and mounting holes enable bench bolting for wobble-free bends. The listing also highlights portability for moving between home and shop locations. Material compatibility includes stainless, copper, galvanized, iron, and more.

Who It’s For

This is a good fit if you work on smaller parts that need varied channel reinforcement and edge-bend profiles. The 24-inch working width is practical for mobile workshops, repair work, and projects like cab panels, mudguards, and reinforcement channels.

The 20-gauge steel and 16-gauge aluminum ratings support many shop tasks, especially when aluminum is common. Modular segmentation helps with frequent geometry changes, since finger reconfiguration replaces custom setups. I would also shortlist it if you want a compact footprint but still need more than basic straight-line bending.

Max Bending Width	30 in
Max Bend Angle	0-135° adjustable
Bending Blade Thickness	0.3 in thick bending blade
Stated Metal Capacity	18-gauge (1.2 mm) mild steel

What We Found

The VEVOR 30-inch box and pan brake focuses on straightforward straight-line bends, with a maximum 30-inch width. It specifies an 18-gauge (1.2 mm) mild steel capacity, paired with a 0.3-inch-thick bending blade for cleaner folds.

You get an adjustable 0-135° angle range, which fits common flange and box angles without complicated steps. The integrated clamping uses a clamping bar instead of separate clamp hardware, aiming to keep positioning consistent. Pre-drilled mounting holes are included for bolting to a workbench, which helps support wobble-free accuracy.

The handle-and-screw approach also supports quick clamping, then you lift the handle to reach the target angle. The listing emphasizes portability and beginner-friendly operation. Overall, it is aimed at single-bend tasks and tighter workshop layouts where a shorter frame is easier to manage.

Who It’s For

I would shortlist this for small workshops and beginners who want an easier route to repeatable bends. The 30-inch capacity works well for compact trays, short duct components, brackets, and panel flanges.

An 18-gauge mild steel rating is a good match for lighter fabrication where thick steel is not the default material. The 0-135° adjustability supports prototype changes and projects with multiple angles. Integrated clamping simplifies workflow for first-time users because it reduces fiddling with external clamp gear.

Max Bending Width	24 in
Max Steel Thickness	20 gauge steel
Max Aluminum Thickness	16 gauge aluminum
Max Bend Angle	Up to 135°

What We Found

The Eastwood 24-inch box and pan sheet metal brake focuses on simple small-shop forming. It targets bending up to 24 inches and supports materials up to 20 gauge steel or 16 gauge aluminum. That lines up with common home fabrication needs.

It offers bend angles up to 135 degrees, which supports typical flange and box geometries. The design strength is tied to its adjustable 5-finger capability, intended for multiple edge profiles without swapping tools. The listing includes weight and overall dimensions, with a stated 94.6 lbs.

It also provides mounting area measurements, which helps confirm workspace fit before buying. This model emphasizes practical usability over powered operation or advanced clamping technology. With clear capacity numbers and a defined footprint, it is easier to select it for specific project requirements.

Overall, it functions like a traditional benchtop box-and-pan folder with adjustable finger versatility.

Who It’s For

I would choose this for home workshops and small metal shops working on compact ducting, trays, and panel flanges. The 20-gauge steel and 16-gauge aluminum ratings fit many DIY builds when thickness stays within common ranges.

The 24-inch width is ideal for smaller enclosure parts and repair work where a larger machine does not make sense. Adjustable fingers help if you need different bend hems or edge spacing across multiple designs.

Because the weight and dimensions are stated, it is also a better option if you need to confirm mounting clearance in advance.

Max Bending Width	730 mm (28 in)
Max Mild Steel Thickness	1.2 mm (18 Ga)
Max Aluminum Thickness	1.5 mm (16 Ga)
Max Bend Angle	0-135°

What We Found

The KASTFORCE KF5002 provides a 28-inch maximum bending width with an adjustable 0-135° angle range. It lists an 18-gauge (1.2 mm) mild steel capacity and a 1.5 mm (16 gauge) aluminum capability, aiming at reliable forming across common shop materials. The steel frame is built to support longer-term use.

The brake is intended for safe operation for both professionals and DIY users. It is suited for applications like furnace ductwork, shutters, and auto body projects.

Because it uses a straight box-and-pan folder style, it offers functional bending for covers, housings, and panel flanges without magnetic clamping or a powered mechanism. The 28-inch width sits between 24-inch and 30-36-inch competitors, which can reduce split seams on medium-sized parts.

The listing emphasizes gauge ratings, making it easier to size the brake for predictable thickness work.

Who It’s For

I would shortlist this for medium shop tasks where 24 inches feels too short, but 36 or 48 inches is overkill. Projects like duct sections, shutter panels, and auto body repair often need multiple angles with manageable part sizes.

An 18-gauge mild steel rating fits many standard fabrication tasks without stepping into heavy industrial territory. The adjustable 0-135° range fits repair and prototype work where bend angles change frequently. A steel frame plus straightforward manual operation suits builders who want a durable tool that integrates into typical benchtop setups.

Max Bending Width	24 in (610 mm)
Max Steel Thickness	20 Ga (1.0 mm) mild steel
Brake Range	0-135°
Finger Sizes	1”, 2”, 3”, 8”, 10”

What We Found

The KASTFORCE KF5006 emphasizes finger-based forming with a 24-inch maximum width. It targets 20-gauge (1.0 mm) mild steel and lists a 0-135° brake range for versatile box and pan shapes. The key feature is the included 5-finger set, with listed sizes of 1”, 2”, 3”, 8”, and 10”.

That range supports different flange and edge-bend widths depending on the part profile. It also lists a max box depth of 1.5” (38 mm), which helps you gauge how deep you can form typical trays, covers, and brackets.

The finger system is intended to support modular bending layouts without custom tooling for every job. Since the working width is shorter, it is best for small-to-medium runs. The thicker steel parts implied by the rated capacity are meant to help maintain form accuracy.

The finger sizing options also support planning bend allowance and edge geometry.

Who It’s For

I would choose this if you frequently change flange widths and want fingers sized to match your design. It fits fabrication of small duct accessories, electrical enclosures, and bracketry where multiple edge profiles show up.

The 24-inch working width suits home garages and compact shops that do not have room for larger benchtop brakes. With the 20-gauge mild steel target and 0-135° range, it covers many enclosure geometries.

Finger variety adds value if your work involves design revisions often, because you can swap fingers instead of changing tools.

Max Bending Width	24 in
Max Bend Angle	0-135°
Finger Sizes	1”, 2”, 3”, 8”, 10”
Material/Build Note	Spray molding treatment for wear and corrosion resistance

What We Found

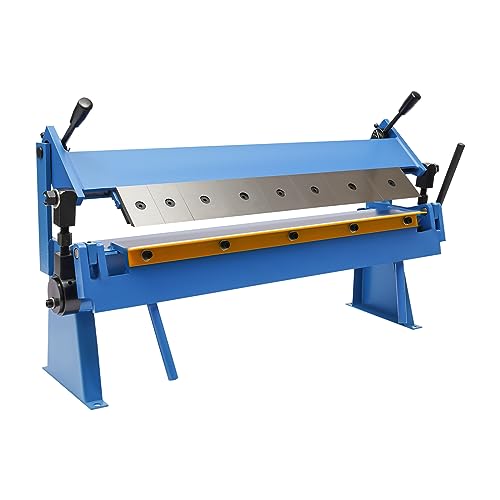

The Box and Pan Sheet Metal Brake at 24 inches targets practical edge bending with a 0-135° range and a maximum 24-inch width. It uses a spray-molding treatment designed for wear and corrosion resistance.

A standout is the removable five-finger system, with listed sizes of 1”, 2”, 3”, 8”, and 10”. Removable fingers let you bend in sections, which can help when one part needs different flange widths in the same layout.

The eccentric adjustment for the cutting edge adds an accuracy and safety component for blade setup. The listing claims high efficiency with a stable structure and an easy starting workflow, you center the sheet between the bending blade and holder, then bend.

It also notes the brake ships almost assembled, which can reduce unboxing and setup time. Overall, it aims to deliver benchtop folding capability with finger modularity for varied flange geometries.

Who It’s For

I would shortlist this for small shops and hobbyists who want modular flange widths without moving to premium magnetic clamping systems. The 24-inch working length suits short ducts, trays, and panel flanges where part size stays manageable.

The 0-135° adjustment covers typical box-and-pan angles for many DIY builds and repair work. Removable fingers are especially useful if you change designs often or need multiple flange dimensions, like enclosure covers with different edge heights.

Since it ships nearly assembled, it works well if you want to get to first use quickly with fewer setup steps.

What to Look For Before Buying

Choosing a sheet metal brake starts with bending width, because it limits part size and seam planning. Then I would match thickness capacity to your sheet gauges and decide what clamping style you need, rigid press plates, magnetic clamping, or finger segmentation.

Most models cover adjustable 0-135° angles for common box-and-pan bends, but finger systems can make a big difference when flange widths change. Finally, prioritize mounting stability and setup convenience so you get more repeatable angles, not just possible bends.

Check Match bending width to your largest part

Measure the longest bend line you need, then plan clearance for clamp and finger placement. If your parts exceed the stated width, you will either use a longer brake or plan extra seams.

Shorter 24-inch brakes fit compact trays, but 36- to 48-inch models handle more real-world boxes with fewer breaks. For industrial fabrication, a 100-inch floor model avoids layout compromises.

Value Prioritize clamping stability and blade thickness

I would look for integrated press plates, clamping bars, or magnetic clamping to keep the sheet edges aligned during the bend. Blade thickness and reinforced ribs matter when you are closer to the rated capacity.

Bench bolting and stable base designs can reduce wobble, which shows up as more accurate angles. Magnetic models often cost more, but they can pay off if repeatability matters for production work.

Rating Use gauge ratings as a starting point, not a guarantee

Gauge ratings are a starting point, not a guarantee. Capacity depends on material hardness, bend radius, and how close you are to the maximum angle. I would treat listed figures like practical targets, then confirm with scrap near the rated thickness.

If your work repeatedly pushes hard bends, consider a sturdier frame or a higher-capacity industrial model. When specs feel light, I would rely more on structural details and design features.

Verify Confirm finger configuration and adjustability needs

Removable or segmented fingers help you create different flange widths without swapping the whole brake setup. If your projects include multiple hem heights or channel reinforcements, finger modularity becomes more than a nice feature. Verify the included finger sizes and max box depth against the geometry you actually build.

Adjustable 0-135° ranges also help when you need to tweak angles mid-build.

Frequently Asked Questions

What is a box and pan brake used for in sheet metal work?

A box and pan brake forms enclosed boxes, pans, flanges, and channel-like shapes by clamping a sheet and bending it over a blade with fingers. It is commonly used for HVAC parts, brackets, trays, and enclosure bodies. Finger systems help manage different flange widths in one setup.

For complex shapes, some models use open-ended designs or segmented components.

How do magnetic clamping brakes differ from manual clamps?

Magnetic clamping uses a magnetic base to hold the sheet, which can reduce edge slip during bending. That improves repeatability, especially on longer workpieces. Manual clamps and integrated press plates rely on mechanical tightness and a stable benchtop.

Magnetic models can also speed up operation, often with foot-pedal control, but they require an electrical setup.

Is 20-gauge steel capacity enough for most projects?

For many DIY and small-shop builds, 20-gauge mild steel and similar aluminum thicknesses cover common duct and enclosure parts. That said, steel hardness and how sharp you need the fold also affect real performance. I would test with scrap near the rated gauge to confirm results.

If your work often runs near maximum thickness or calls for deep box hems, higher-capacity models or more rigid frames can reduce strain.

Why do fingers matter on a sheet metal brake?

Fingers control how the sheet is supported during the bend, and they help you vary flange widths across your part. Removable or modular fingers let you create different bend profiles without changing the whole setup. That matters for designs with offsets, hems, or channel reinforcement edges.

Finger flexibility can also improve throughput by cutting setup time between batches.

How can wobble and inaccurate angles be prevented?

To prevent wobble and inaccurate angles, bolt the brake to a rigid workbench using the provided mounting holes to limit movement. Use correct handle technique and avoid forcing beyond the tool’s comfortable range.

For thicker materials, increase clamp pressure and make sure the sheet sits fully under the blade and fingers. Magnetic clamping can reduce slip, but stable mounting still matters.

🎯 Final Verdict

Choose the KAKA INDUSTRIAL EB-4816M when you want brake-for-sheet-metal work with crisp, repeatable bends and faster workflow. Its 6-ton magnetic clamping and 220V foot-pedal control are aimed at consistent results, even toward the workpiece center.

If you are shopping for large-shop production where length dominates, the KAKA INDUSTRIAL W-10012A is the alternative, with 100-inch width and a 12-gauge capacity. Double-check your maximum bend length and sheet thickness first, then match the tool’s clamping style to how you build day to day.
